Backrest cover panel, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

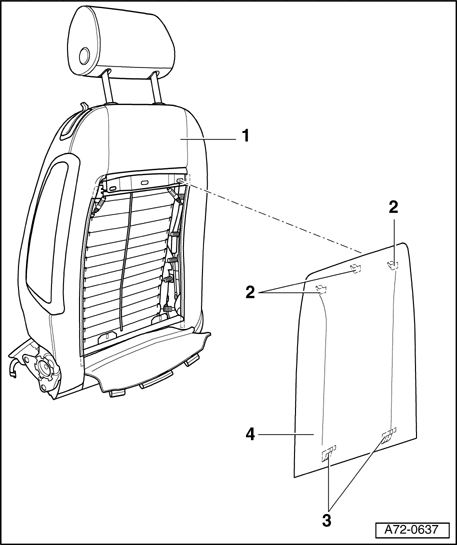

1 - Front seat
2 - Clips (3x)
3 - Holders (2x)
4 - Backrest cover panel
- Removing
- Unclip clips - 3 - (3x) by inserting a flat screwdriver in clip and turning screwdriver clockwise until clip is released.
- Remove backrest cover panel - 4 - upward from holders - 3 - (2x).
- Installing
- Replace damaged clips - 2 - (3x).
- Install backrest cover panel - 4 - in reverse order of removal.
