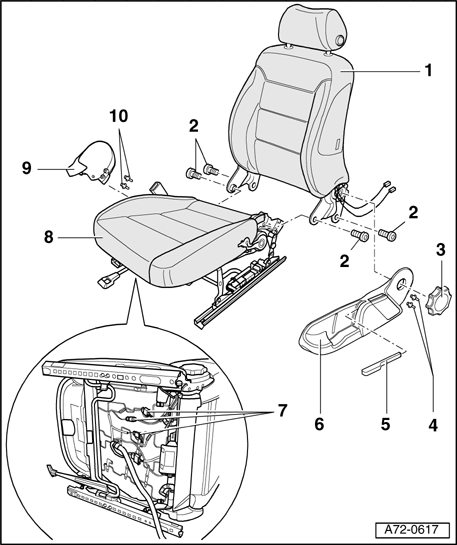

Front seat backrest, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Torque wrench V.A.G 1331
CAUTION:
Observe relevant safety precautions for vehicles installed with side airbags →
Additional safety precautions for side airbag .
1 - Backrest
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to future for seat repair VAS 6136.
- Remove backrest adjuster → Backrest adjuster, removing and installing .
- Remove seat height adjuster → Seat height adjuster, removing and installing .
- Remove side trim on sill panel side → Side trim on sill panel side, removing and installing .
- Remove side trim on tunnel side → Side trim on tunnel side, removing and installing .
- Disconnect connectors - 7 - (3x).
- Remove cables at mounting rails.
- Remove bolts -2- (4x).
- Tilt backrest - 1 - forward onto seat.
- Press cushion aside and carefully pull wiring harness out of seat pan - 8 -.
- Remove backrest - 1 -.
- Installing
- Replace bolts - 2 - (4x).
- Before inserting bolts - 2 - (4x) recut the thread in the backrest frame.
- Install backrest - 1 - in reverse order of removal.
2 - Bolts (4x)
- Tightening torque 20 Nm
3 - Backrest adjuster
4 - Plastic rivet (2x)
5 - Seat height adjuster
6 - Side trim, sill panel side
7 - Connector (3x)
8 - Seat pan
9 - Side trim, tunnel side
10 - Plastic rivet (2x)
