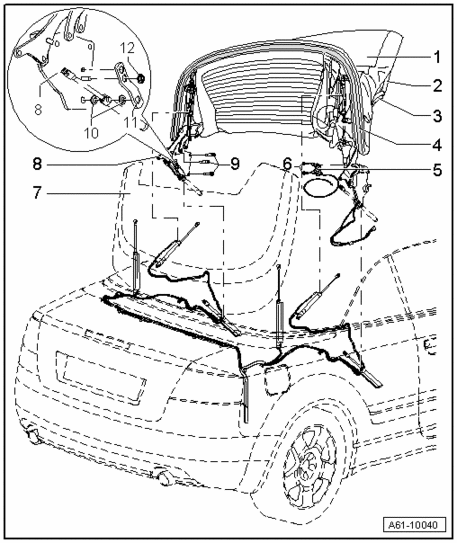

Convertible top - assembly overview: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Convertible top
- Removing → Convertible top, removing and installing .
2 - Front roof frame seal
3 - Center roof frame seal
4 - Bracket/rear roof frame seal
- Removing → Convertible top frame seals - assembly overview .
5 - Convertible top switch unit
Consists of:
- Convertible Top Closed Position Switch F202 and
- Convertible Top Open Position Switch F171
- Removing → Convertible top position switch (Convertible Top Open Position Switch F171/Convertible Top Closed Position Switch F202), removing .
6 - Bolts
- 21 Nm
7 - Convertible top compartment cover
8 - Main bracket
9 - Bolts
- 36 Nm
10 - Plastic washers
11 - Main hydraulic cylinder retaining bracket
12 - Nut
- 20 Nm
