Bumper, mounting to shock absorber
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Up to Vehicle Identification Number (VIN) 400 000
NOTE:
- Shock absorber is self-adjusting, meaning it can compensate bearing tolerances in height between bumper and shock absorber when screwing in the socket head bolt.
- This holds and secures the front bumper automatically in the previously adjusted position when screwing in the socket head bolt - 1 -.
- In vehicles as of Vehicle Identification Number (VIN) 400 001, the self-adjusting height compensation has been discontinued.

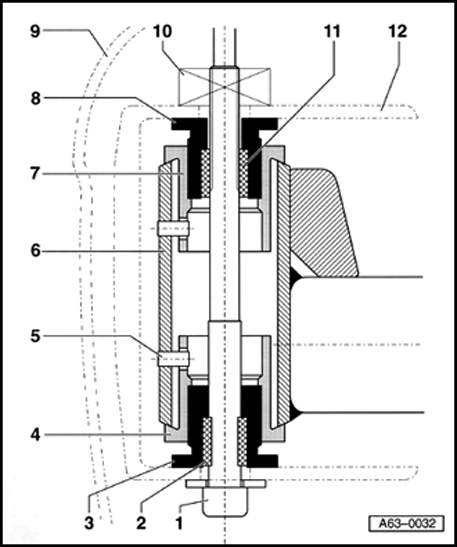

1 - Socket head bolt
- 23 Nm
2 - Lower carrier bushing
- Plastic part pressed into adjusting screw.
- No replacement part available
3 - Lower adjusting screw
- Before assembling bumper, screw in completely but do not tighten.
- Left-hand thread
- No replacement part available
4 - Lower threaded bushing
- Secured against falling out with securing pin.
- No replacement part available
5 - Securing pin
- No replacement part available
6 - Shock absorber
- Removing and installing → Shock absorber, removing and installing .
7 - Upper threaded bushing
- Secured against falling out with securing pin.
- No replacement part available
8 - Upper adjusting screw
- Screw in completely before assembling bumper.
- Right-hand thread
- No replacement part available
9 - Cover
- Removing and installing → Front bumper, removing and installing .
10 - Nut
- Belongs to crossmember delivery casing.
11 - Upper carrier bushing
- Plastic part pressed into adjusting screw.
- No replacement part available
12 - Cross member
- Removing from cover and installing → Crossmember, removing from cover and installing
