Overview - Rear Lid

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

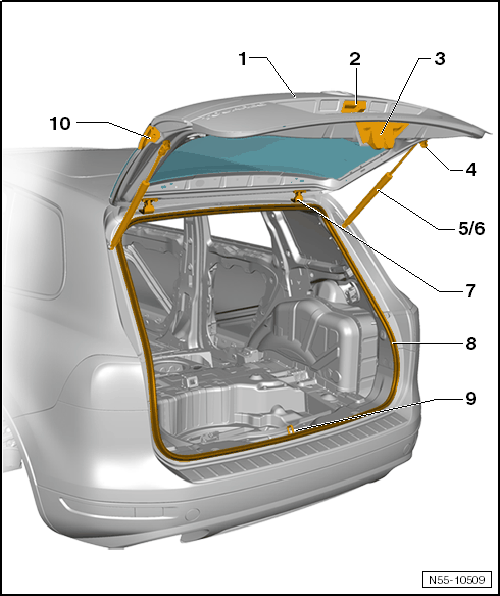

Fig 1: Rear Lid Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Lid
- Removing and installing. Refer to REAR LID, REMOVING AND INSTALLING .
- Adjusting. Refer to REAR LID, ADJUSTING .
Release Button
- Removing and installing. Refer to RELEASE BUTTON, REMOVING AND INSTALLING .
Rear Lid Latch
- Removing and installing. Refer to REAR LID LATCH, REMOVING AND INSTALLING .
Adjusting Buffer
- Left and right
- Adjusting. Refer to ADJUSTING BUFFER, ADJUSTING .
Rear Lid Drive Motor
- Removing and installing. Refer to REAR LID DRIVE MOTOR .
Gas-Filled Strut
- Removing and installing. Refer to GAS-FILLED STRUT .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
Hinges
- Removing and installing. Refer to REAR LID HINGE .
Seal
- Removing and installing. Refer to REAR LID SEAL, REMOVING AND INSTALLING .
Catch
- Removing and installing. Refer to CATCH, REMOVING AND INSTALLING .
- Adjusting. Refer to CATCH, ADJUSTING .
Sensor Strip
- Pinch protection for rear lid drive motor
- Left and right
