Adjusting Buffer, Adjusting

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The following adjustment is only for the right adjusting buffer. Adjustment for the left adjusting buffer is derived accordingly from this.

Turn the adjusting buffer -1- 90° to remove or install it.

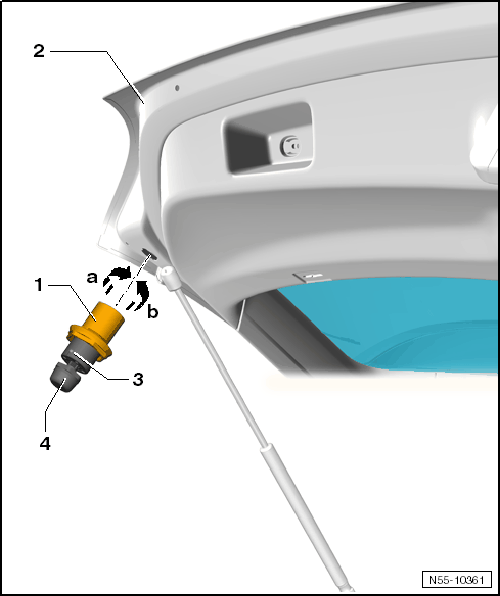

Fig 1: Identifying Rear Lid Adjustment Buffer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the clamping screw -4- until it is visible in the rubber buffer.

-- Pull the locking retainer -3- out of the adjusting buffer -1-.

-- Set the locking retainer to dimension -a- = 12.5 mm.

Fig 2: Identifying Notched Slider Adjustment Dimension

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Close the rear lid in the initial locking position using light pressure over the center.

-- Open the rear lid again.

Fig 3: Clamping Screw Screwed In For Adjustment Buffer To A Depth Of Dimension

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Screw in the adjusting buffer clamping screw -1- to a depth of dimension -a- = 20 mm.

-- Check the adjustment.
