Catch, Adjusting

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Loosen the bolts -1- and slide the rear lid catch -2- in the oversized holes -arrows a and b-.

Adjust the catch -2- so that the rear lid latch recess with the rotary latch engages with the center of the catch -2-.

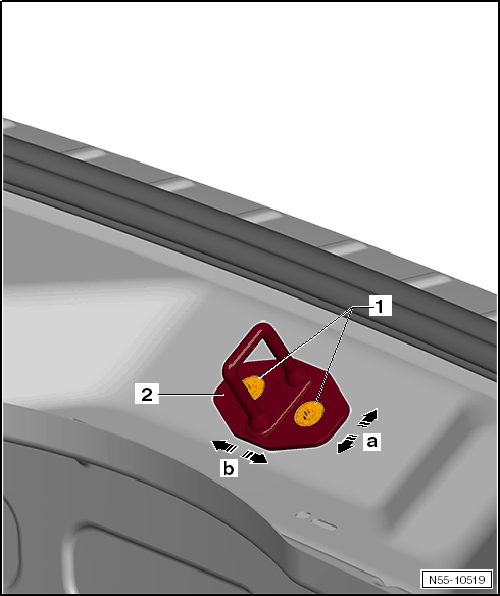

Fig 1: Rear Lid Striker Pin, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lock carrier cover. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- Loosen the bolts -1-.

-- Move the striker pin -2- into the upper position and tighten the bolts -1-.

-- Lock the rear lid and check the adjustment.

-- Tightening specification for bolts -1- : 18 Nm
