Overview - Hood Locking And Unlocking Components

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

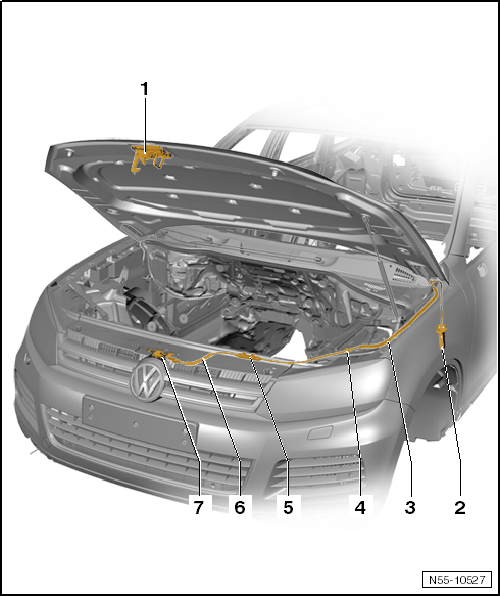

Fig 1: Hood Locking And Unlocking Components Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Catch
- Removing. Refer to CATCH, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD LATCH, ADJUSTING .
Release Lever
- Removing and installing. Refer to RELEASE LEVER .
Release Cable
- From the cable coupling to the actuator lever
Clip
Release Cable Coupling
- The cable coupling is located above the driver side headlamp.
- Disconnecting. Refer to RELEASE CABLE, DISCONNECTING .
Release Cable
- From the hood lock to the cable coupling
- Clipped into the cable coupling
Hood Latch
- Removing and installing. Refer to HOOD LOCK, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD LATCH, ADJUSTING .
