Hood Latch, Adjusting
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

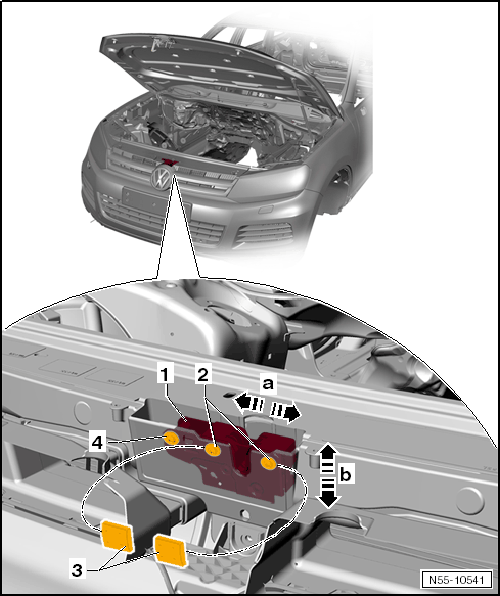

-- Remove the caps -3- from the bolts -2-.
-- By loosening the bolts -2 and 4-, the hood lock -1- can be adjusted with respect to the side of the hood in direction of -arrow a- and the height in direction of -arrow b-.
Gap dimension. Refer to the appropriate service information.
-- Tightening Specification for bolts -2 and 4- : 12 Nm.
