Release Cable, Disconnecting
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

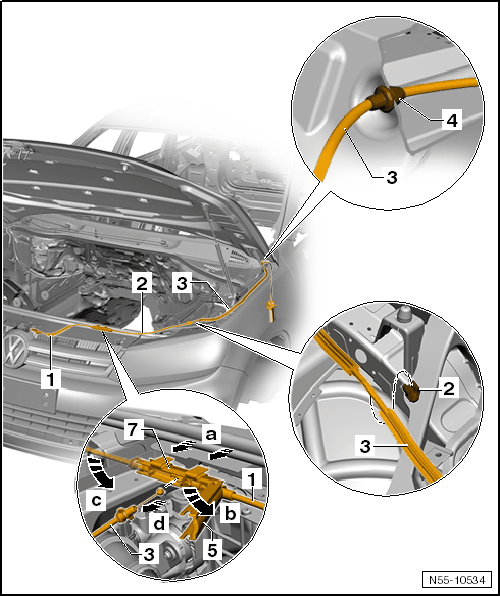

-- Open the hood.
-- Remove the release cable coupling -7- from the lock carrier in direction of -arrows a-.
-- Open the cap -5- of the release cable coupling in direction of -arrow b-.
-- Tilt the release cable -3- 90° in direction of -arrow c- and remove from the release cable coupling -7- in the direction of -arrow d-.
NOTE:
Make sure the grommet -4- is connected correctly when installing the release cable -3-.
When securing the release cable -3-, pay attention to the clip -2-.
- Before closing the hood, test the function of the release lever and release cable.
