Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

A new hood lock is always delivered with the release cable -2- installed.

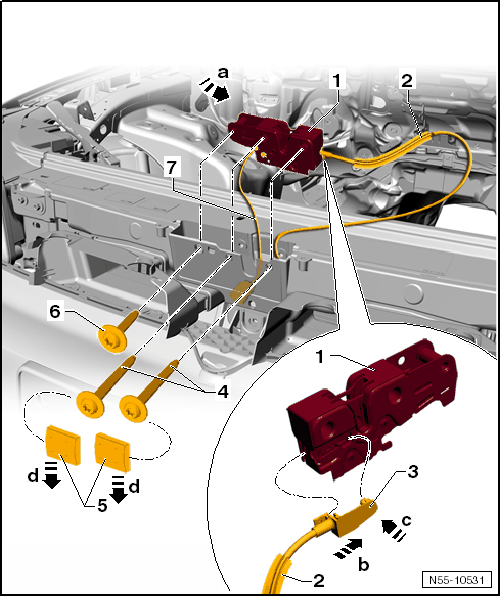

Fig 1: Installing Hood Lock

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the release cable -3- in the hood lock -1- in direction of -arrow c- and lock in direction of -arrow b-.

-- Install the lid latch -1- in the lock carrier in direction of -arrow a-.

-- Connect the harness connector -7- for the engine hood contact switch depending on the optional equipment.

-- Bolt tightening specification -4- : 12 Nm

-- Bolt tightening specification -6- : 12 Nm

-- Push the caps -5- onto the bolts -4- in direction of -arrows d-.

-- Install the release cable -2- in the release cable coupling. Refer to RELEASE CABLE, DISCONNECTING .

-- Adjust the latch. Refer to HOOD LATCH, ADJUSTING .

Before closing the hood, test the function of the release lever and release cable.
