General Information

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If large quantities of metal particles or other deposits such as those caused by partial seizure of the crankshaft or connecting rod damage are found in the engine oil, clean the oil channels thoroughly and replace the engine oil cooler to prevent further damage.

Engine must not be set down on oil pan, because the fluid seal between lower and upper oil pan is otherwise damaged.

NOTE:

To perform the procedure, secure the engine to the Engine/Transmission Holder - Universal Mounting:VAS6095/1 and the Engine/Transmission Holder - V6 TDI Bracket:VAS6095/1-4 on the Engine And Transmission Holder:VAS6095 .

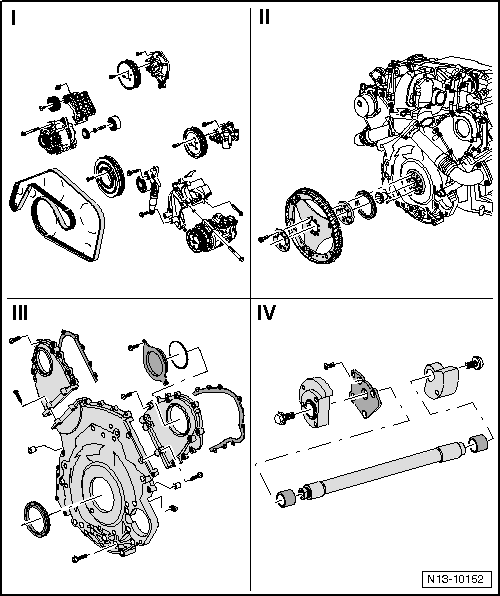

Fig 1: Engine Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Part I. Refer to OVERVIEW - RIBBED BELT DRIVE .

Part II. Refer to OVERVIEW - DRIVE PLATE .

Part III. Refer to OVERVIEW - TIMING CHAIN COVERS .

Part IV. Refer to OVERVIEW - BALANCE SHAFT .
