Overview - Muffler

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

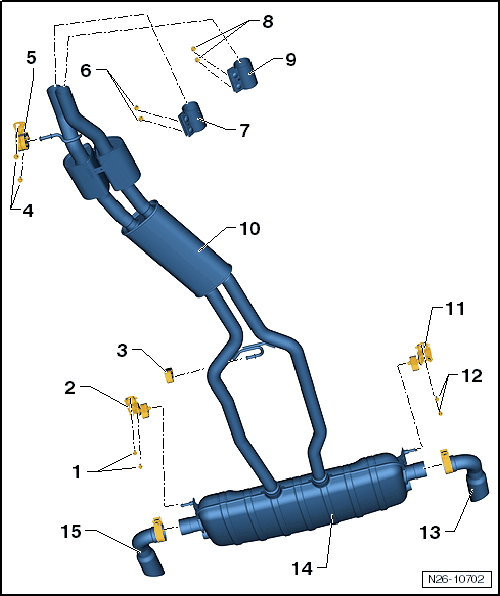

Fig 1: Exploded View Of Muffler With Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolts
- 23 Nm
Suspended Mount
- Replace if damaged.
Suspended Mount
- Replace if damaged.
Bolts
- 23 Nm
Suspended Mount
- Replace if damaged.
Nuts
- 35 Nm
- For the clamping sleeve
Clamping Sleeve
- Always replace
- Before tightening, align exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Tighten threaded connections evenly.
Nuts
- 35 Nm
- For the clamping sleeve
Clamping Sleeve
- Always replace
- Before tightening, align exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Tighten threaded connections evenly.
Center Muffler
- Original equipment as one unit with rear muffler. For repairs, replace each separately
- Center and rear mufflers, separating. Refer to CENTER MUFFLER AND REAR MUFFLER, SEPARATING .
- Align the exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Suspended Mount
- Replace if damaged.
Bolts
- 23 Nm
Tail Pipe
- Replacing. Refer to TAIL PIPES, REPLACING .
Rear Muffler
- Original equipment as one unit with center muffler. For repairs, replace each separately
- Center and rear mufflers, separating. Refer to CENTER MUFFLER AND REAR MUFFLER, SEPARATING .
- Align the exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Tail Pipe
- Replacing. Refer to TAIL PIPES, REPLACING .
