Exhaust System, Installing Without Tension

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Align the exhaust system when cold.
Tightening specifications. Refer to OVERVIEW - MUFFLER .

-- Loosen the bolts on the front clamping sleeves.

-- Loosen the threaded connections on the repair clamps, if equipped.

-- Press exhaust system forward -arrow- under the following tensions are adjusted on the individual retaining loops:

Front retaining loop: dimension -a- = 2 mm.

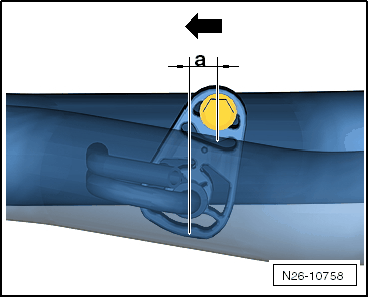

Fig 1: Identifying Exhaust System And Right Front Retaining Loop Dimension
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Center retaining loop: dimension -a- = 15 mm.

Fig 2: Identifying Center Loop Dimension -a-
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear retaining loop: dimension -a- = 12 mm.

Fig 3: Identifying Left And Right Rear Retaining Loops Dimensions
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Hold exhaust system in this position and tighten clamping sleeve bolts evenly to 35 Nm.

NOTE:

A second technician is needed to align the exhaust system with repair sleeves between front and rear mufflers.

If all adjustment dimensions are not achieved, loosen the affected bracket from body and shift accordingly.
