Tail Pipes, Replacing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Work Procedure

-- Remove the tail pipe -arrow-.

Fig 1: Identifying End Pipe

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach end pipe to rear muffler and align.

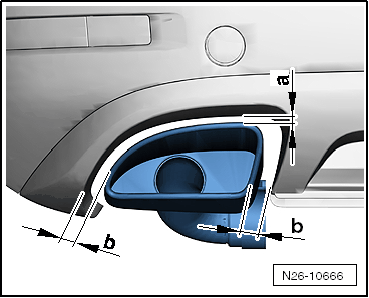

Fig 2: Check the distance of the left and right tail pipes to the bumper cover:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check distance of left and right tail pipes to bumper:

Dimension -a- = 20 mm minimum
-b- = align evenly

Tightening Specification 60 Nm.

-- Center the tail pipe inside the cut-out in the bumper.
