Supply Pipe For Engine Oil Cooler, Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left engine mount. Refer to LEFT ENGINE SUPPORT, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and the left engine support.

Fig 1: Identifying Left Engine Mount Bracket Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

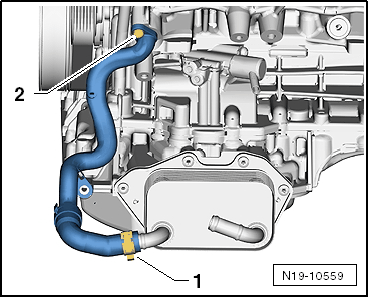

-- Remove the coolant hose from the engine oil cooler, then remove the bolts and the coolant pipe.

Fig 2: Identifying Coolant Hose To Oil Cooler, Bolts And Coolant Pipe

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Tightening specification. Refer to OVERVIEW - COOLANT PIPES .

Install in reverse order of removal while noting the following:

NOTE:

Replace the O-rings.

Secure all hose connections with hose clamps that are specific to that model. Refer to the Parts Information.

-- Clean or smooth O-ring sealing surface before installing.

-- Coat the O-ring with coolant and slide it onto the coolant pipe.

-- Install the engine support. Refer to OVERVIEW - SUBFRAME MOUNT .

-- Install the A/C compressor. Refer to A/C COMPRESSOR .

-- Install the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Fill with coolant for the high temperature coolant circuit. Refer to COOLANT, DRAINING AND FILLING, HIGH TEMPERATURE CIRCUIT .
