Overview - Coolant Pipes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Replace the O-rings and seals.

Make sure the couplings are tight.

Tightening Specifications:

M6 bolts: 10 Nm

M8 bolts: 20 Nm

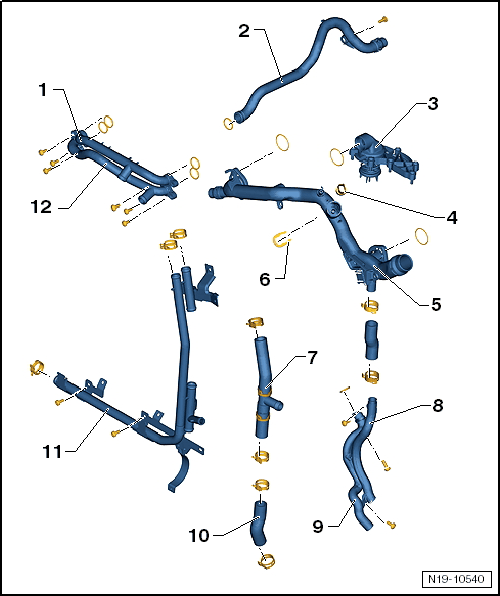

Fig 1: Exploded View Of Coolant Pipes With Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Upper Coolant Pipe on Supercharger
- Removing and installing. Refer to COMPRESSOR COOLANT PIPES, REMOVING AND INSTALLING .
Upper Coolant Pipe
- Removing and installing. Refer to UPPER COOLANT PIPE, REMOVING AND INSTALLING .
Coolant Thermostat with Housing
- Removing and installing. Refer to COOLANT THERMOSTAT, REMOVING AND INSTALLING .
Engine Coolant Temperature Sensor -G62-
- Removing and installing. Refer to ENGINE COOLANT TEMPERATURE SENSOR -G62-, REMOVING AND INSTALLING .
Front Coolant Pipe
- Removing and installing. Refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .
Clip
T-Connection
- To the Electric Drive Power and Control Electronics -JX1-
Return Pipe for Engine Oil Cooler
- Removing and installing. Refer to COOLANT PIPES FOR ENGINE OIL COOLER, REMOVING AND INSTALLING .
Supply Pipe for Engine Oil Cooler
- Removing and installing. Refer to COOLANT PIPES FOR ENGINE OIL COOLER, REMOVING AND INSTALLING .
Hose
- To the Low Temperature Circuit Coolant Pump -V468-
Front Coolant Pipes
- Removing and installing. Refer to COOLANT PIPES FOR LOW TEMPERATURE COOLANT CIRCUIT, REMOVING AND INSTALLING .
Lower Coolant Pipe on Supercharger
- Removing and installing. Refer to COMPRESSOR COOLANT PIPES, REMOVING AND INSTALLING .
