Overview - SUBFRAME Mount

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

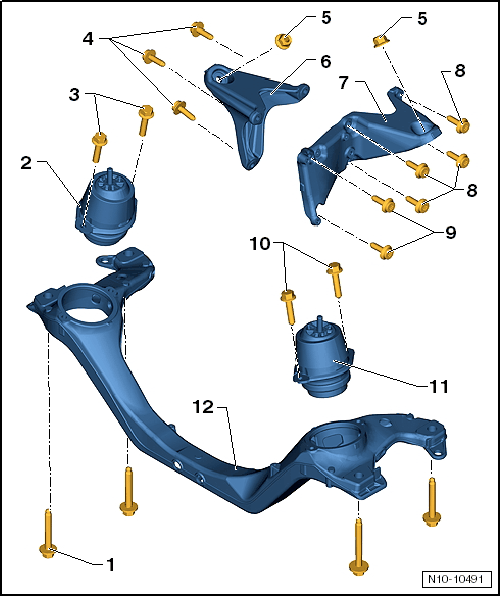

Fig 1: Engine Mount, Bracket And Carrier Overview
GWWN10-10491
  1. Engine Support Bolts
    • 120 Nm + 180° additional turn
    • Replace
  2. Right Engine Mount
  3. Bolts
    • 60 Nm
  4. Bolts
    • 40 Nm
  5. Nuts
    • 75 Nm
  6. Right Engine Support
  7. Left Engine Support
  8. Bolts
    • 40 Nm
  9. Bolts
    • 20 Nm
  10. Bolts
    • 60 Nm
  11. Left Engine Mount
  12. Engine Support
