Power Steering Pump Assembly Overview, 8-Cylinder Gasoline And Diesel Engine

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Power steering pump is not designed to be serviced. If there are customer complaints, the cause must be determined using a pressure and leak test. If there is a malfunction, replace the power steering pump.

NOTE:

Always replace seals.

Do not reuse fluid you have drained.

If power steering fluid is low in the reservoir, check the steering system for leaks.

If there are leaks in the area of the line connections, the lines/connections must first be inspected for leaks, tightened as necessary and wiped dry.

Replacement power steering pumps from the distribution center do not contain any fluid. Before installing, fill pump with Hydraulic Fluid:G 004 000 M2 and turn pump by hand. Otherwise, the power steering pump may be noisy when operating or may even be damaged.

Fluid type: Hydraulic Fluid:G 004 000 M2

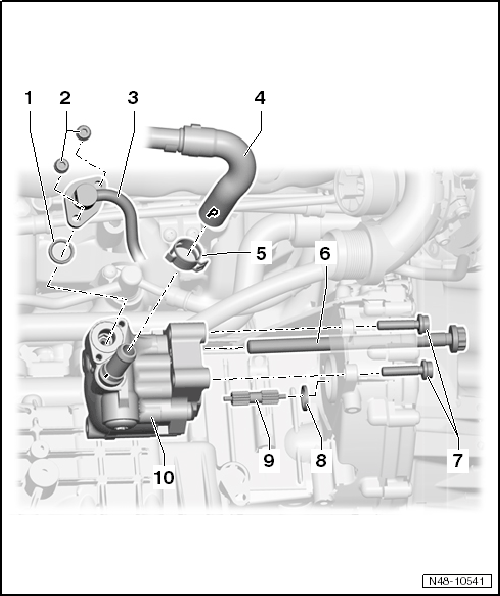

Fig 1: Exploded View Of Power Steering Pump Assembly Overview, (8-Cylinder Gasoline And Diesel Engine)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seal
- Replace after each removal. Refer to Removing .
Bolt
- 9 Nm
Pressure Line
CAUTION:
- Insert the pressure line completely when installing.
Suction Hose
- The "P" marking on the intake hose must align with the seam on the power steering pump. Refer to Installing .
Clamp
- Always replace if removed
Bolt
- Manual transmission tightening specifications. Refer to appropriate service information. .
- Automatic transmission tightening specifications. Refer to [For transmission(s) 0C8] [For engine(s) CGFA, CATA, CGRA] Controls, Housing .
- Transmission/engine/power steering pump bolt
Bolt
- 25 Nm
Seal
- Always replace if removed
Input Shaft
- Grease the splines on the input shaft and power steering pump all the way around.
- Grease the hole on the pump side and on the engine side or on the end of the shaft. Refer to the Parts Information.
Power Steering Pump
- For the allocation. Refer to the Parts Information.
- Fill with Hydraulic Fluid:G 004 000 M2 before installing
- Removing and installing. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING, 8-CYLINDER GASOLINE AND DIESEL ENGINE .
- Delivery pressure, checking. Refer to POWER STEERING PUMP DELIVERY PRESSURE, CHECKING, 8-CYLINDER GASOLINE AND DIESEL ENGINE .
