Power Steering Pump, Removing And Installing, 8-Cylinder Gasoline And Diesel Engine: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Remove the left engine support. Refer to appropriate service information. .

-- Remove the left catalytic converter. Refer to PRE-CATALYTIC CONVERTER, REMOVING AND INSTALLING[For engine(s) CATA] .

-- Loosen the clamp -1- and remove the intake hose -2- from the power steering pump.

GWWN48-10542

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unscrew the bolts -3- and remove the pressure line -4- from the power steering pump.

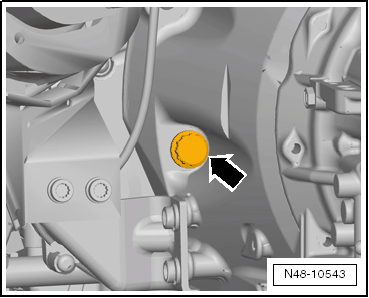

-- Remove the bolt -1-.

GWWN48-10543

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

For Vehicles with an 8-Cylinder Diesel Engine Only

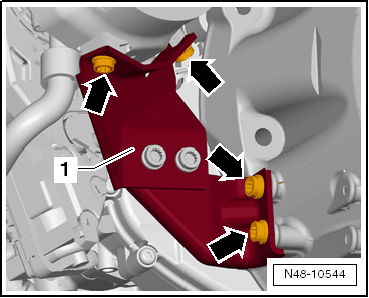

-- Unscrew the bolts -arrows- and remove the bracket -1-.

GWWN48-10544

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

If necessary, then remove the bolts with a commercially available angled multi-socket key.

Continuation For All Vehicles

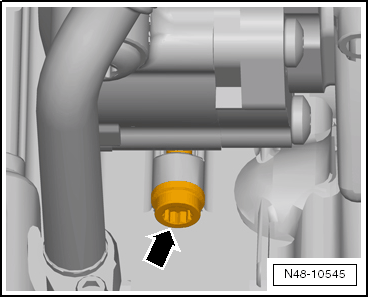

-- Unscrew the bolt -arrow- beneath the power steering pump.

GWWN48-10545

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

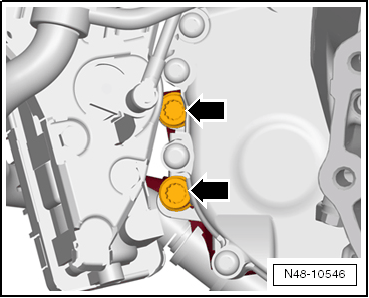

-- Remove the bolts -arrows- for the power steering pump.

GWWN48-10546

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the power steering pump from the engine.

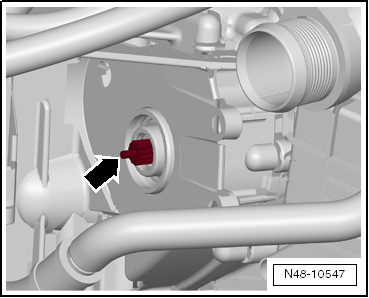

-- If necessary, remove the power steering pump input shaft -arrow- from the engine by hand.

GWWN48-10547

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

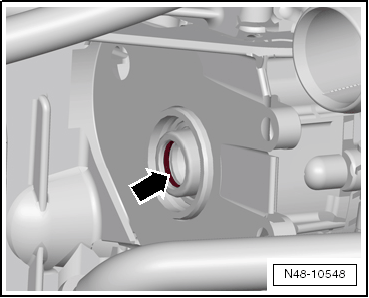

-- Replace the seal -arrow-.
