Overview - Brake Pedal
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

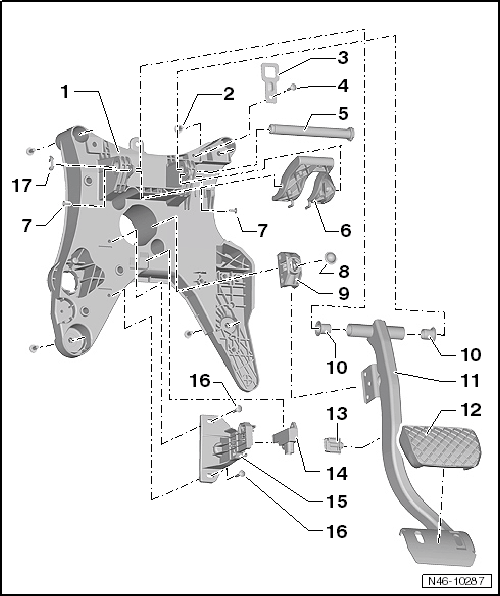

Illustration For Automatic Transmission And Hybrid Vehicles
WARNING:
The path of the brake pedal must not be shortened via extra floor mats.
- Lubricate all bearing and contact surfaces with Grease:G 000 450 02 .
- Mounting Bracket for Pedal Assembly
- Bolt
- 20 Nm
- Support
- Screw
- 3 Nm
- Mounting Pin
- Only fits in one position, opening in the mounting pin on the tab on the mounting bracket
- Impact Wedge
- Removing and installing. Refer to REMOVING
- Screw
- 3 Nm
- Bearing Shell
- Mount
- For the ball head on the brake booster push rod
- Bearing Bushing
- Brake Pedal
- Removing and installing. Refer to BRAKE PEDAL, REMOVING AND INSTALLING .
- Brake pedal from brake booster, disconnecting. Refer to BRAKE PEDAL, REMOVING FROM BRAKE BOOSTER .
- Brake pedal together with brake booster, installing. Refer to BRAKE PEDAL, ATTACHING TO BRAKE BOOSTER .
- Allocation. Refer to the Parts Information.
- Pedal Cap
- Bracket with Magnet
- Only for hybrid vehicles
- Bracket to brake pedal screw, 3.5 Nm
- Adjusting. Refer to BRAKE PEDAL POSITION SENSOR -G100-, ADJUSTING .
- Brake Pedal Position Sensor -G100-
- Only for hybrid vehicles
- Adjusting. Refer to BRAKE PEDAL POSITION SENSOR -G100-, ADJUSTING .
- Brake Pedal Position Sensor -G100- Bracket
- Only for hybrid vehicles
- Adjusting. Refer to BRAKE PEDAL POSITION SENSOR -G100-, ADJUSTING .
- Screw
- 3 Nm
- Only for hybrid vehicles
- Circlip
- For mounting pin
