Brake Pedal, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the footwell cover. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- Remove the instrument panel side covers. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

Remove the driver side instrument panel left trim. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

Remove the driver side instrument panel right trim. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- Remove the knee airbag. Refer to AIRBAG .

-- Remove the vehicle electrical system control module. Refer to CONTROL MODULES .

-- Remove the accelerator pedal.

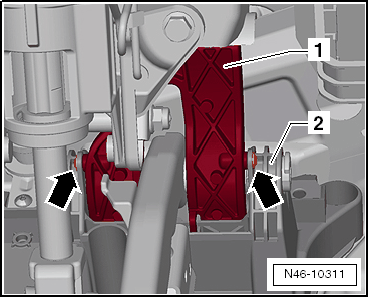

-- Remove the impact wedge -1- from the mounting bracket -2- by removing the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the brake pedal -3- from the brake booster. Refer to BRAKE PEDAL, REMOVING FROM BRAKE BOOSTER .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

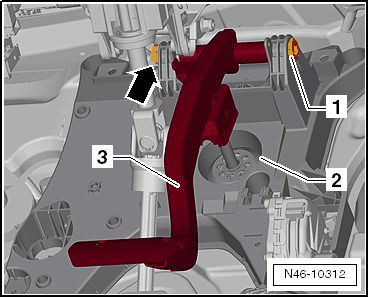

-- Remove the securing cotter pin -arrow- from the mounting pin -1-.

-- Remove the mounting pin -1- from the mounting bracket.

-- Remove the brake pedal.
