Headlamp Housing Mount, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Tightening specification, refer to OVERVIEW - HEADLAMP, HEADLAMP MOUNT THROUGH MY 2012 , OVERVIEW - HEADLAMP, HALOGEN HEADLAMPS, THROUGH MY 2012 and OVERVIEW - HEADLAMP, HID HEADLAMPS THROUGH MY 2012 .

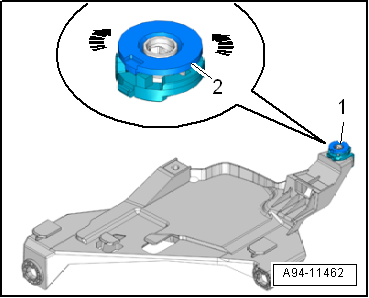

-- For vehicles from MY 2013, check the adjusting nut -2- on the adjusting mechanism -1- for ease of movement -arrows-.

Fig 1: Checking Adjusting Nut For Ease Of Movement

Courtesy of AUDI OF AMERICA, LLC

-- Turn the adjusting nut all the way down, but to not tighten it.

-- Push the headlamp housing all the way into the housing mount.

The headlamp housing must slide into the mount gently without using force.

-- Install the headlamp housing -3- and bracket onto the lock carrier and the fender.

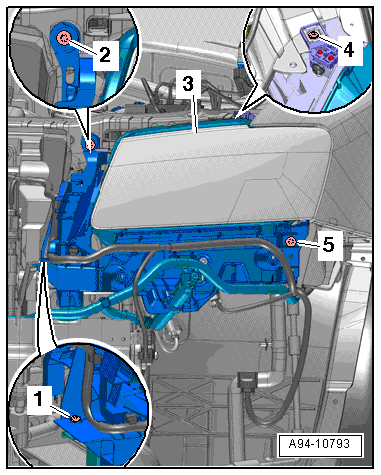

Fig 2: Identifying Headlamp Housing Components

Courtesy of AUDI OF AMERICA, LLC

-- Install the screws -1, 2, 4 and 5- hand-tight.

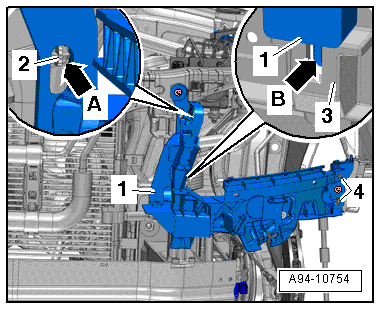

The guide tab -arrow B- on the headlamp housing bracket -1- must fit into the opening on the lock carrier -3-.

Fig 3: Identifying Headlamp Housing Bracket Components
Courtesy of AUDI OF AMERICA, LLC
The guides -2- and -4- must fit into the mounts -arrow A-.

-- Install the front bumper cover, refer to FRONT BUMPER COVER, REMOVING AND INSTALLING / OVERVIEW - FRONT BUMPER COVER .

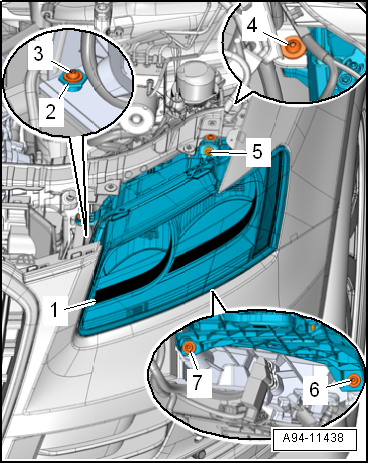

Fig 4: Aligning Headlamp Housing Gap

Courtesy of AUDI OF AMERICA, LLC

-- Align the headlamp housing gap -1- dimensions according to the body contours.

Gap dimension = even gap dimension.

-- If height adjustment is required, loosen the bolts and twist the adjusting nuts -2-.

-- Tighten the bolts -3 through 7-.

NOTE:

On vehicles from MY 2013: Tightening the bolt -4- automatically turns the adjusting nut on adjuster towards the mounting point and secures it.

-- Check gap dimensions again. If necessary, repeat the adjustment of the gap dimensions as described above.

-- Tighten the bolts -1 through 4- while aligning the headlamp housing so that it sits flush with the out edge of the fender.

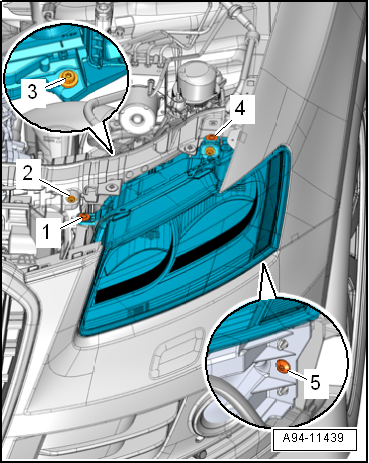

Fig 5: Aligning Headlamp Housing So That It Sits Flush

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover, refer FRONT BUMPER COVER, REMOVING AND INSTALLING / OVERVIEW - FRONT BUMPER COVER .

-- Tighten the bolt -5-.

-- Install the front bumper cover, refer to FRONT BUMPER COVER, REMOVING AND INSTALLING / OVERVIEW - FRONT BUMPER COVER .

-- Adjust the headlamp, refer to HEADLAMP, ADJUSTING .
