Overview - Headlamp, Hid Headlamps Through My 2012

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

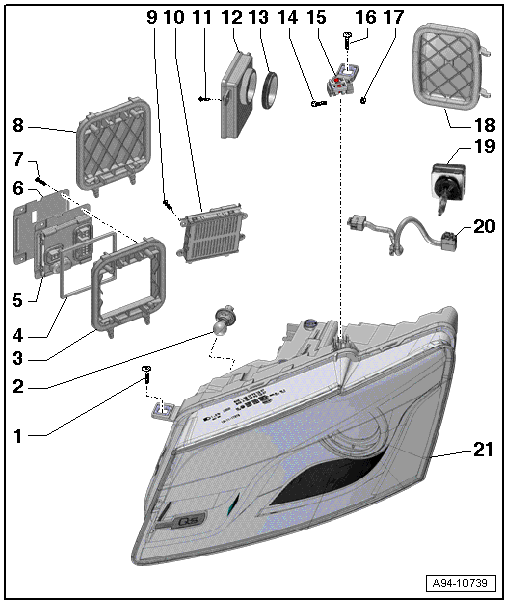

Fig 1: Exploded View Of Headlamp, HID Headlamps (Through MY 2012)
GWWA94-10739Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 4.5 Nm
  2. Turn Signal Bulb
  3. Housing Cover
    • For the turn signal
    • For vehicles with cornering lamp
  4. Seal
    • Replace if damaged.
  5. Power Output Stage
  6. Retaining Plate
  7. Screw
    • 1.4 Nm
  8. Housing Cover
    • For the turn signal
    • For vehicles without cornering lamp
  9. Bolt
    • 1.4 Nm
  10. Daytime Running Lamp and Position Lamp LED Module
  11. Screw
    • 1.4 Nm
  12. HID Lamp Control Module
  13. Seal
  14. Bolt
    • 4.5 Nm
  15. Headlamp Housing Bracket
  16. Screw
    • 4.5 Nm
  17. Nut
    • Self-locking
    • Replace
  18. Housing Cover
    • For low beam
  19. HID Headlamp Bulb
  20. Adapter Wire
    • For HID headlamp bulb
    • Not available as a replacement part
  21. Headlamp Housing
    • The daytime running lamps and parking lamps are LED lamps and are integrated in the headlamp housing. The LEDs cannot be replaced. The entire headlamp must be replaced.
    • The front side marker lamp bulb is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
    • Removing and installing, refer to HEADLAMP HOUSING, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2012
