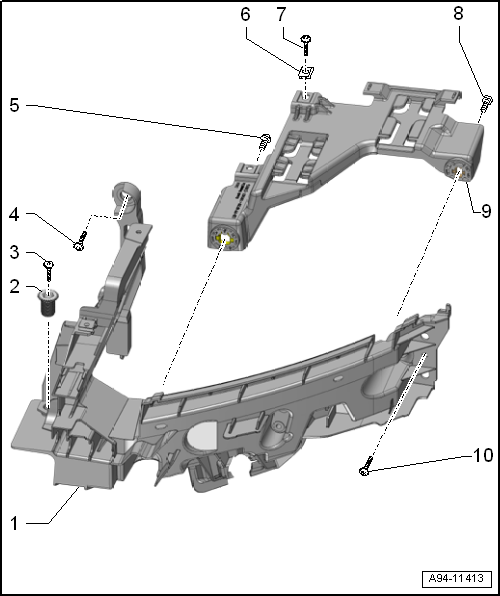

Overview - Headlamp, Headlamp Mount Through My 2012
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- For the headlamp housing mount
- Adjusting Nut
- For adjusting the front bumper cover to the body contour
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Bolt
- 4.5 Nm
- Spring Nut
- Screw
- 4.5 Nm
- Screw
- 4.5 Nm
- Mount
- For the headlamp housing
- Removing and installing, refer to HEADLAMP HOUSING MOUNT, REMOVING AND INSTALLING
- Screw
- 1.2 Nm
