Detaching cover and padding from backrest frame
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

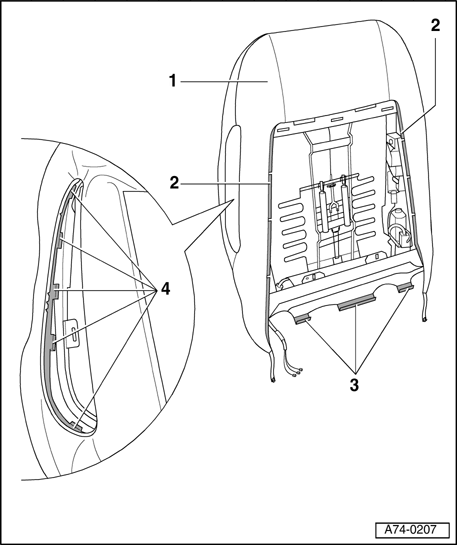

1 - Backrest
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Remove backrest → Front seat backrest, assembly overview .
- Remove head restraints → Head restraint, removing and installing .
- Remove head restraint guides → Head restraint guides, removing and installing .
- Remove easy-entry facility → Easy-entry facility handle, removing and installing .
- Remove backrest cover panel → Backrest cover panel, removing and installing .
- Pry off lower securing strips - 3 - (3x).
- Disengage securing strips - 2 - on side (2x).
- Remove backrest frame → Backrest frame, assembly overview .
- Remove side airbag → Side airbag (electric seat), assembly overview .
- Pry off plastic tabs - 4 - (5x).
- Remove padding with cover.
- Installing
- Installation is in reverse order of removal.
2 - Side securing strips (2x)
3 - Lower securing strips (3x)
4 - Plastic tabs (5x)
