Head restraint guides, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- Removing
NOTE:

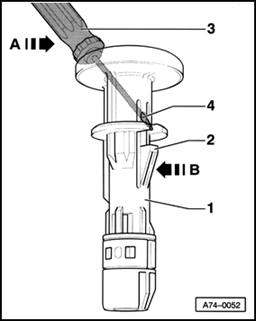

- For improved clarity, head restraint guide - 1 - is shown removed.
- Insert padding needle or screwdriver - 3 - with maximum width of 2 mm into hole - 4 - (hole - 4 - is opposite retaining clip for head restraint guide).
- Pry screwdriver - 3 - in direction of arrow - A - , press retainer tab - 2 - in direction of arrow - B - , and pull out head restraint guide - 1 -.
- Installing
- Installation is reverse of removal.
