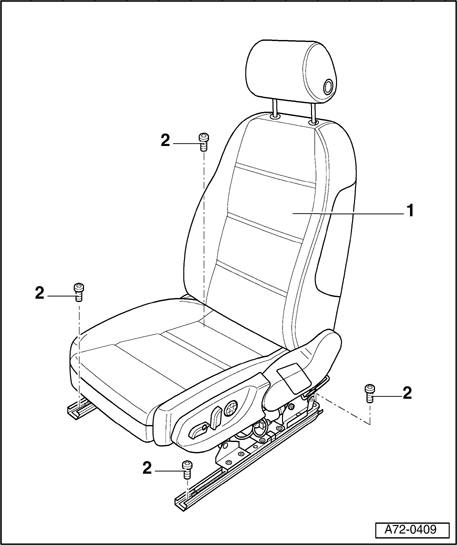

Front seat, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Before disconnecting the battery: obtain the radio code.
1 - Front seat
- Removing
- Remove front seat rail covers → Front seat rail cover, assembly overview .
- Remove rear seat rail covers → Rear seat rail cover, assembly overview .
- Move front seat - 1 - up and back as far as possible.
- Remove front bolts - 2 - (2x).
- Move seat forward.
- Remove rear bolts - 2 - (2x).
CAUTION:
Before removing seat: Disconnect battery Ground (GND) strap
- Tilt front seat - 1 - back.
- Disconnect connectors → Connectors, disconnecting .
- Connect airbag adapter → Airbag adapter VAS 6036 , connecting .
- Installing
- Installation is in reverse order of removal.
2 - Bolts (4x)
- Tightening torque 40 Nm
