Airbag adapter VAS 6036 , connecting

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

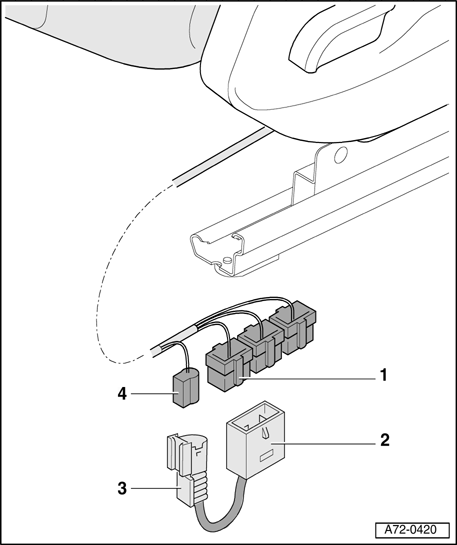

Fig 1: Identifying Seat Connector Power Supply Connector (Red), Airbag Adapter Power Supply Connector (Red), Airbag Adapter Connector (Yellow) & Airbag Connector (Yellow)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

The mechanic must electrostatically discharge him/herself before disconnecting ignition and ground (GND) wires (briefly touch closing wedge for door or body).

CAUTION: The airbag adapter VAS 6036 must remain connected to the seat until the seat is reinstalled.

1 - Seat connector power supply connector (red)

2 - Airbag adapter power supply connector (red)

3 - Airbag adapter connector (yellow)

4 - Airbag connector (yellow)

Disconnect ignition and Ground (GND) wires.
Connect airbag connector - 4 - to airbag adapter connector - 3 -.
If present: Connect the airbag adapter power supply connector - 2 - to the seat connector power supply connector - 1 -.
