Front seat rail cover, assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

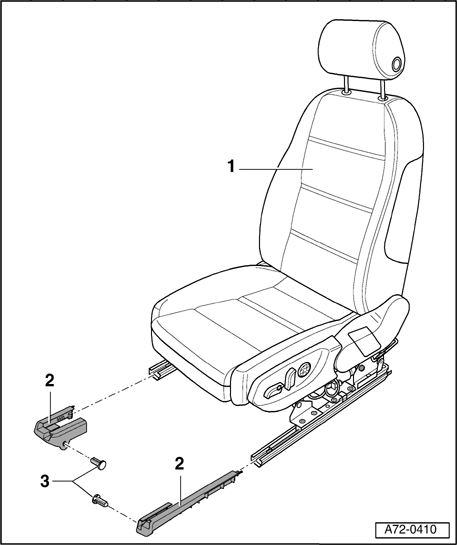

Fig 1: Front Seat Rail Cover, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front seat

2 - Seat rail covers (2x)

Removing

Move front seat - 1 - back as far as possible.
Remove securing clips - 3 - (2x).
Remove seat rail covers - 2 - (2x).

Installing

Install in reverse order of removal.

3 - Securing clips (2x)
