Front 3-point seat belt with belt tensioner, assembly overivew: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

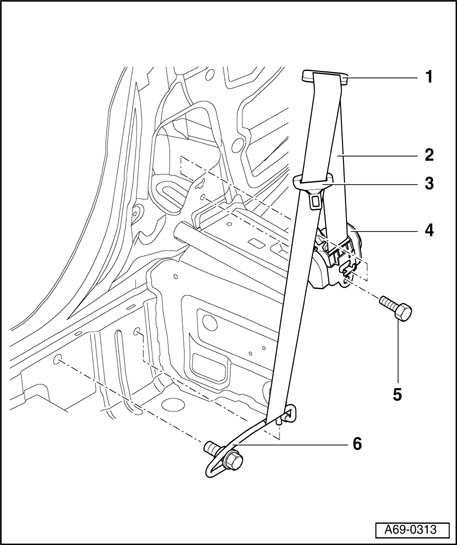

1 - Belt guide
2 - Belt
3 - Latch plate
4 - Belt reel/belt tensioner
- Removing
CAUTION:
Observe the necessary measures when disconnecting battery. →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT, CABRIOLET
- Disconnect battery.
- Remove rear bench seat → Rear seat bench, assembly overview .
- Remove rear seat backrest → Rear seat backrest, assembly overview .
- Remove side trim → Rear side trim, assembly overview .
- Remove bolt - 5 -.
- Disconnect belt tensioner connector Disconnecting connector for front seat belt tensioner .
- Remove anchorage point for outer floor panel - 6 - → Front anchorage point for outer floor panel .
- Unclip belt guide - 1 -.
- Pull belt - 2 - out of guide - 1 -.
- Remove belt reel - 4 -.
- Installing
- Install front seat belt in reverse order of removal.
5 - Bolt
- Tightening torque 55 Nm
6 - Anchorage point: Outer floor panel
