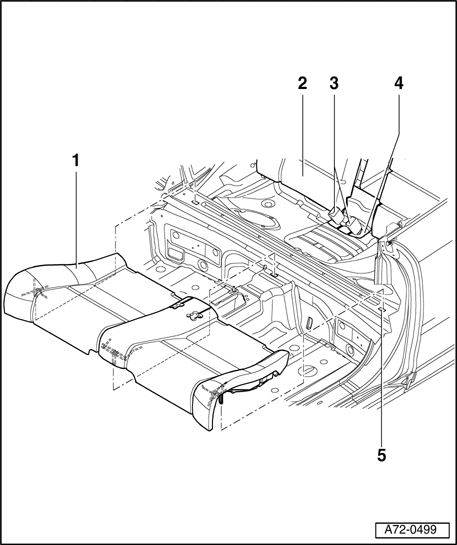

Rear seat bench, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Rear seat bench
- Removing
- Pull rear seat bench - 1 - up and remove rear seat bench - 1 -.
- With seat heating: Detach connector for seat heating.
- Installing
- Place protective cover - 4 - below buckles - 3 - (2x).
- Install piping at buckle cover Cord at fabric cover of belt buckles, removing and installing
- With seat heating: Connect connector for seat heating.
- Push rear seat bench - 1 - under rear seat backrest - 2 - and feed in buckles - 3 - (2x).
- Engage rear seat bench - 1 - in grommets - 5 - (3x).
2 - Rear seat backrest
3 - Buckles (2x)
4 - Protective cover
5 - Grommets (3x)
