Wheelhousing trim, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

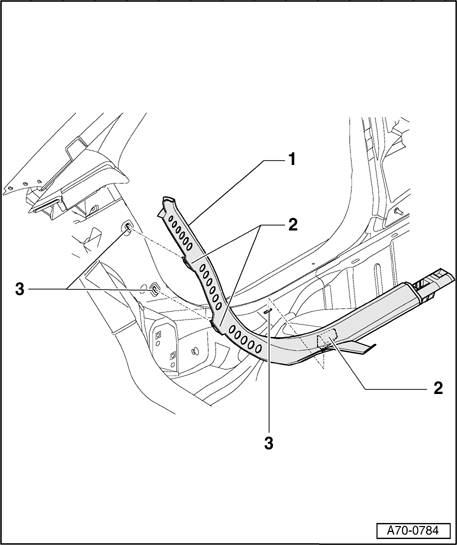

1 - Wheel housing trim
- Removal:
- Remove lower B-pillar trim → Lower B-pillar trim, removing and installing .
- Remove C-pillar trim → C-pillar trim, removing and installing .
- Remove side upholstery → Rear seat side padding, removing and installing .
- Unclip three clips - 2 - from their mounts - 3 - and remove wheelhousing trim - 1 -.
- Installing:
- After assembling trim, make sure seal is properly fitted.
2 - Clamps (Qty. 3)
3 - Mounts (Qty. 3)
