C-pillar trim, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required
- Torque wrench V.A.G 1410
CAUTION:
Note safety precautions for working on airbags →
Airbag system, general safety precautions and side curtain airbags →
Side curtain airbag, additional safety precautions .

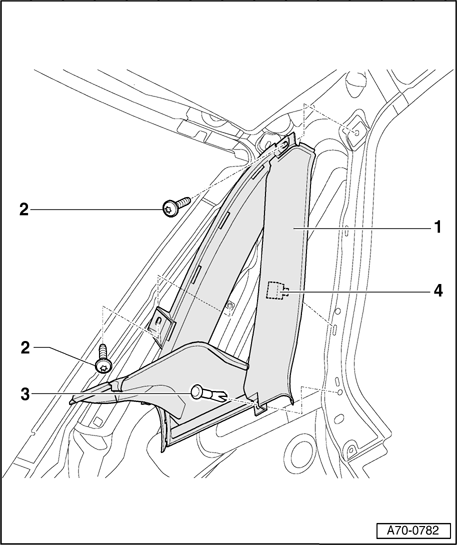

1 - C-pillar trim
- Removal:
- Remove - D - pillar trim → D-pillar trim, removing and installing .
- Remove two bolts - 2 - on C-pillar trim - 1 - at top and bottom.
- Remove side upholstery → Rear seat side padding, removing and installing .
- Remove clip - 3 - beneath side panel: Press a screwdriver between both parts of the clip and pull the upper part upward. Lower clip part compresses and can be loosened.
- Unclip rear shelf at outer clip and raise it up.
- Unclip C-pillar trim at clip - 4 - and remove it.
- Installing:
CAUTION:
Always follow installation sequence for C-pillar trim.
- Raise rear shelf.
- Position trim - 1 - into mounts at rear shelf.
- Install clip - 4 - in its mount.
- Press lower part of clip - 3 - together and insert clip again.
- Reinstall two bolts - 2 -.
CAUTION:
Ensure trim is held securely.
- Secure rear shelf and side upholstery.
2 - Screws, (2x)
- Tightening torque 4 Nm
- Self-locking
- Replace after each disassembly
- Threaded holes for screws must always be cleaned (for example, with thread cutter)
3 - Clip (Qty. 1)
4 - Clamp (Qty. 1)
