Front bumper (up to model year 2005) - assembly overview: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

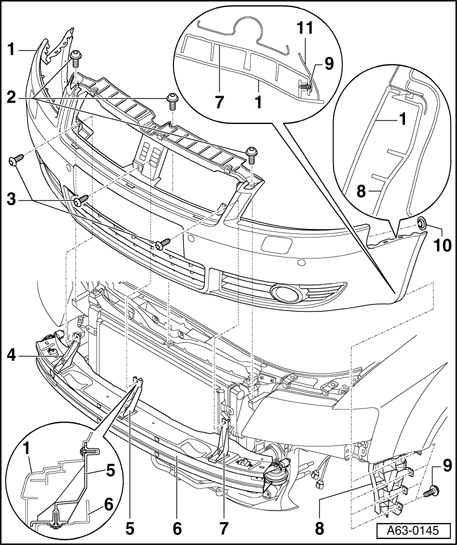

1 - Bumper cover
- Removing and installing → Front bumper (up to model year 2005), removing and installing .
- Adjustment to hood → Bumper cover (up to model year 2005), adjusting to hood .
- Positioning license plate mounting holes License plate securing holes, creating .
- If a new part is installed, holes for license plate may only be drilled on places marked or the license plate may only be secured on the corresponding places.
- Panel gap dimensions Panel gap dimensions .
2 - Screw
- 6 Nm
3 - Screw
- 3 Nm
4 - Right support
5 - Center support
6 - Cross member
- Removing and installing → Bumper crossmember (up to model year 2005), removing and installing .
7 - Left support
8 - Guide piece
- Removing and installing Guide piece, removing and installing .
9 - Screw
- 1.5 Nm
10 - Grommet
- Qty. 2
- Insert bumper cover in fender before installing Fender grommets, installing .
11 - Wheel housing liner
