Front bumper (up to model year 2005), removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

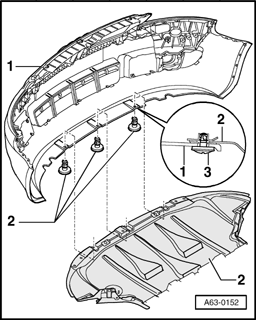

Fig 1: Locating Bolts Or Quick Release Fasteners

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

Loosen bolts or quick release fasteners - 3 -. The quick release fasteners behind the sound insulation - 2 - remain installed.
The quick release fasteners remain in the bumper cover - 1 -.

Fig 2: Locating Left/Right Wheelhousing Liners In Front Area

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Loosen left and right wheel housing liners in front area - arrows -.

Fig 3: Pulling Back Wheelhousing Liner & Unclipping Bumper Rear Edge From Catch

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull back wheel housing liner - arrow A -.
Remove bolt - 2 - and nuts - 1 -.
Unclip bumper rear edge from catch - arrow B -.
Repeat procedure on opposite side of the vehicle.

Fig 4: Radiator Grille, Removing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 1 -.
Fold decorative grille - 2 - forward slightly and pull up out of bumper.

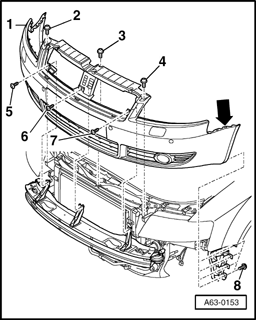

Fig 5: Removing Bumper Cover Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Unscrew bolts - 8 -.
Remove bolts - 2 - , - 3 - and - 4 - as well as bolts - 5 - , - 6 - and - 7 -.
Remove side pieces - arrow - sideways out of guide piece.
Pull bumper cover forward slightly.

Fig 6: Identifying Hose To Headlight Cleaning System & Bumper Cover Connector(s)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

If installed, disconnect hose - 1 - to headlight cleaning system and reserve washer fluid in a clean container for re-use.
Disconnect connector(s) - 2 - to bumper cover.

Fig 7: Checking To See If Threaded Pins On Bumper Side Walls And Grommets In Fenders Are Present

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing

Installation is reverse of removal, noting the following:

NOTE:

Before installing bumper cover - 1 - , check to see if threaded pins - 2 - on bumper side walls and grommets - 3 - in fenders - 4 - are present.

Tighten nut.

5 - Nut (5 Nm)

Fig 8: Identifying Hose To Headlight Cleaning System & Bumper Cover Connector(s)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Slide bumper cover onto lock carrier and if necessary, reconnect headlamp washer system hose - 1 - and electrical connectors - 2 -.
Slide bumper cover into installation position. Ensure threaded pins in bumper side walls engage into holes at the fenders.

Fig 9: Pulling Back Wheelhousing Liner & Engaging Bumper Rear Edge Into Catch

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull back wheel housing liner - arrow A -.
Engage bumper rear edge into catch - arrow B -.
Tighten nuts - 1 - and bolt - 2 -.
Repeat procedure on opposite side of the vehicle.

1 - Nut (4 Nm)

2 - Screw (1 Nm)
