Convertible top compartment cover latch - assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When working on the convertible top electrical system, disconnect vehicle battery ground strap.

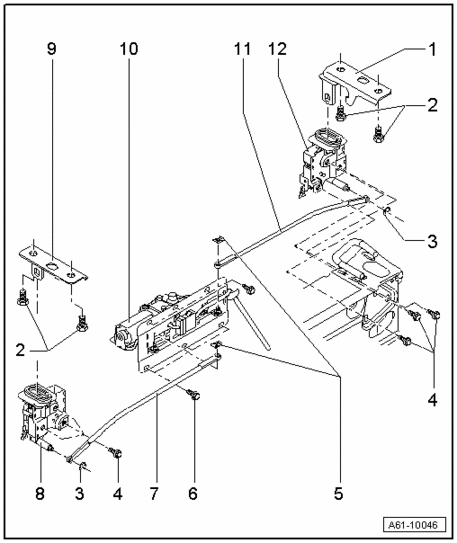

Fig 1: Convertible Top Compartment Cover Latch - Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Right tension plate

Removing → Convertible top compartment cover, removing and installing .

2 - Screw

21 Nm

3 - Locking washer

4 - Screw

21 Nm

5 - Securing clips

6 - Lock bolt (motor/switch)

10 Nm

7 - Left push rod

Preset.

8 - Left convertible top compartment cover lock

The Left Convertible Top Compartment Cover Switch F290 is secured on the lock.
Removing → Left and right convertible top compartment cover locks, removing and installing .

9 - Left tension plate

Removing → Convertible top compartment cover, removing and installing .

10 - Convertible Top Compartment Cover Locking Motor V222 (Convertible Top Compartment Latch Switch (unlock) F293)

Removing Convertible top compartment cover lock, removing and installing .
Adjusting → Convertible top compartment cover, adjusting drive motor .

11 - Right push rod

Preset

12 - Right convertible top compartment cover lock

The Compartment Cover Locked Right Switch 1 F200 is secured on the lock.
Removing Left and right convertible top compartment cover locks, removing and installing .
