Pressing on tapered roller bearing inner race

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

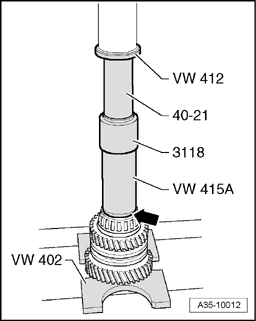

Fig 1: Pressing On Tapered Roller Bearing Inner Race

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Heat inner race to approx. 100° C and press on.
Determine thickness of required circlip Determining thickness of circlip and install circlip.

Fig 1: Pressing On Tapered Roller Bearing Inner Race

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install circlip for tapered roller bearing inner race onto pinion shaft.

Shoulder of tube VW 415 A faces inner race - arrow -.

Then check axial play of 1st speed and 2nd speed selector gears Checking axial play of 1st speed selector gear and Checking axial play of 2nd speed selector gear .
