Component Location Overview - Telephone System
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

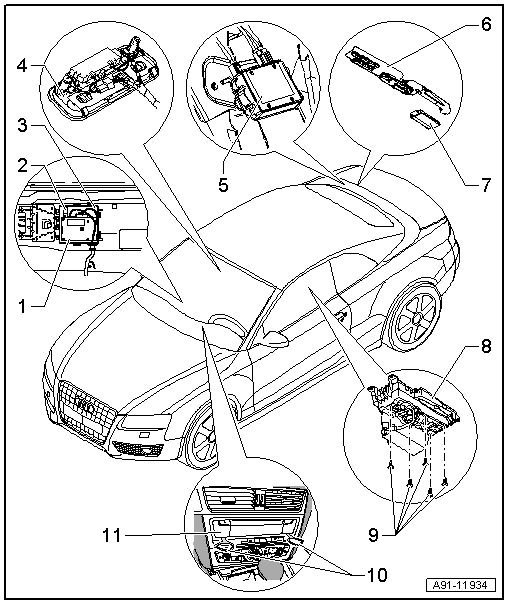

- Telephone Transceiver -R36- (CAN)
- Cell Phone Preparation Connector Assignment (CAN), refer to CELL PHONE PREPARATION CONNECTOR ASSIGNMENT, CAN .
- Bluetooth Hand-Free Calling Connector Assignment (CAN), refer to BLUETOOTH HAND-FREE CALLING CONNECTOR ASSIGNMENT, CAN [XXXX] .
- Removing and installing, refer to TELEPHONE TRANSCEIVER, REMOVING AND INSTALLING
- Bluetooth Antenna -R152-
- E-Box
- Microphone Unit in Front Roof Module -R164-
- Overview, refer to OVERVIEW - MICROPHONE UNIT .
- Removing and installing, refer to MICROPHONE UNIT IN FRONT ROOF MODULE -R164-, REMOVING AND INSTALLING
- Cellular Telephone Amplifier -R86-
- Connector assignment, refer to CELLULAR TELEPHONE AMPLIFIER -R86-, CONNECTOR ASSIGNMENT .
- Removing and installing, refer to CELLULAR TELEPHONE AMPLIFIER -R86-, REMOVING AND INSTALLING
- Antenna bracket
- Telephone Antenna -R65-
- Overview, refer to ANTENNA SYSTEMS .
- Telephone Baseplate -R126-
- Removing and installing (Sound system), refer to TELEPHONE BASEPLATE -R126-, REMOVING AND INSTALLING, CRADLE .
- Removing and installing (cell phone mount), refer to TELEPHONE BASEPLATE -R126-, REMOVING AND INSTALLING, CELL PHONE MOUNT .
- Bolt
- Quantity: 4
- 1 Nm
- Radio Removal Tool :T10057
- Information Electronics Control Module 1 -J794- (MMI)
- Pin assignment, cell phone preparation (MMI), refer to PIN ASSIGNMENT, CELL PHONE PREPARATION MMI
- MMI Bluetooth Cell Phone Connector Assignment, refer to MMI BLUETOOTH CELL PHONE CONNECTOR ASSIGNMENT .
- MMI Bluetooth Hands-Free Setup Connectors, refer to MMI BLUETOOTH HANDS-FREE SETUP CONNECTORS .
- Removing and installing, refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-, REMOVING AND INSTALLING
