Overview - Hid Headlamp (Through My 2012): Notes

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Headlamps must be adjusted after performing measures that could influence Headlamp Adjustment. Refer to HID HEADLAMP, ADJUSTING .

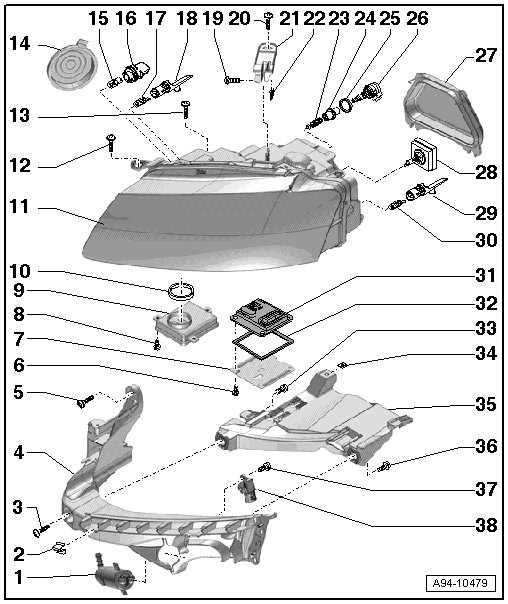

Fig 1: Exploded View Of HID Headlamp (Through MY 2012)
GWWA94-10479Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Headlamp Washer System Spray Nozzle
  2. Mount
    • For headlamp washer system washer fluid line
  3. Bolt
  4. Bracket
  5. Bolt
  6. Bolt
    • 1.4 Nm
  7. Retaining Plate
  8. Screw
    • 1.4 Nm
  9. HID Headlamp Control Module
  10. Seal
  11. Headlamp Housing
    • Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMP .
    • The following items cannot be replaced separately if they are defective: Left Daytime Running Lamp and Position Lamp LED Module -L176- /Right Daytime Running Lamp and Position Lamp LED Module -L177-, Left/Right Low Beam Headlamp Reflector MotorLeft Low Beam Headlamp Reflector Motor -V294- /Right Low Beam Headlamp Reflector Motor -V295-, Left/Right Adaptive Cornering Lamp Motor Left Adaptive Cornering Lamp Motor -V318- /Right Adaptive Cornering Lamp Motor -V319-
  12. Screw
    • 4.5 Nm
  13. Bolt
    • 4.5 Nm
  14. Housing Cover
    • For the front turn signal/parking lamp
  15. Front Turn Signal Bulb
  16. Lamp Socket
    • For the front turn signal
  17. Parking Lamp Bulb
  18. Lamp Socket
    • For the parking lamp bulb
  19. Bolt
    • 4.5 Nm
  20. Bolt
    • 4.5 Nm
  21. Headlamp Housing Bracket
  22. Spring Nut
  23. Ball Joint
    • For headlamp height adjustment
  24. Adjusting Nut
    • For headlamp height adjustment
  25. Seal
  26. Headlamp Beam Adjustment Motor
  27. Housing Cover
    • For low beam
  28. HID Headlamp Bulb
  29. Lamp Socket
    • For the front side marker lamp bulb
  30. Front Side Marker Lamp Bulb
  31. Power Output Stage
  32. Seal
  33. Bolt
  34. Spring Nut
  35. Mount
  36. Bolt
  37. Bolt
  38. Front Airbag Crash Sensor
