Overview - Headlamp Housing Mount (Through My 2012)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

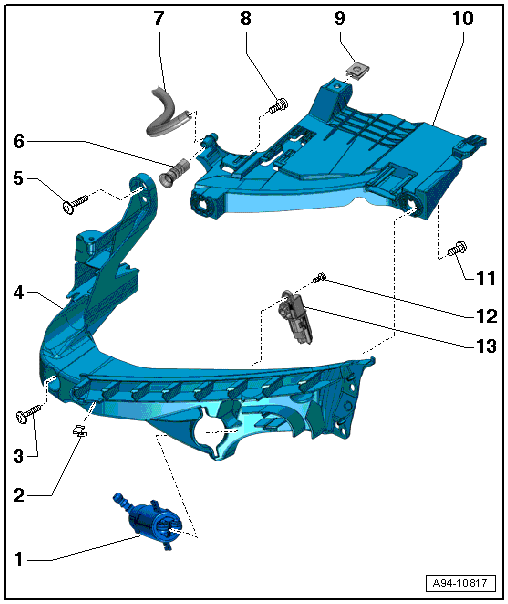

Fig 1: Exploded View Of Headlamp Housing Mount (Through MY 2012)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Headlamp Washer System Spray Nozzle
Mount
- For headlamp washer system washer fluid line
Bolt
- 8 Nm
Bracket
- For the headlamp housing mount
- Removing and installing. Refer to HEADLAMP HOUSING MOUNT BRACKET, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Ventilation Hose
- For the headlamp housing
Ventilation
- For the headlamp housing
Bolt
- 4.5 Nm
Spring Nut
Mount
- For the headlamp housing
- Removing and installing. Refer to HEADLAMP HOUSING MOUNT, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
Bolt
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - AIRBAG CRASH SENSORS / DRIVER FRONT AIRBAG CRASH SENSOR -G283-, REMOVING AND INSTALLING .
Front Airbag Crash Sensor
- Removing and installing. Refer to DRIVER FRONT AIRBAG CRASH SENSOR -G283-, REMOVING AND INSTALLING .
