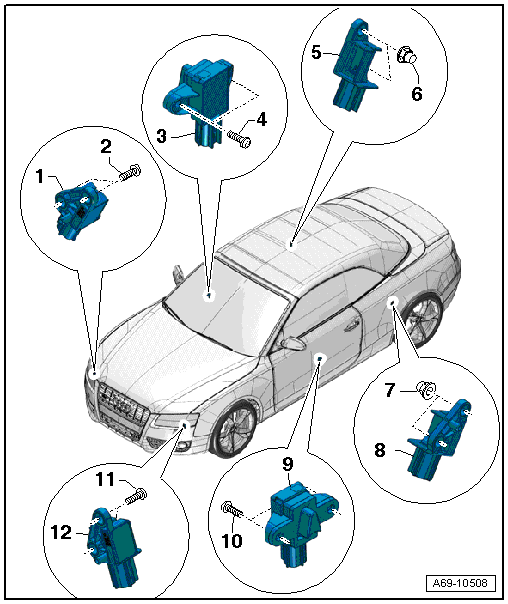

Component Location Overview - Airbag Crash Sensors
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Passenger Side Front Airbag Crash Sensor -G284-
- Component location: on the headlamp housing bracket
- Removing and Installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Quantity: 2
- Front Passenger Thorax Airbag Crash Sensor -G180-
- Component location: inside the door
- For the safety precautions for working with front thorax airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and Installing. Refer to DRIVER THORAX AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER THORAX AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Quantity: 2
- Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- Component location: on the inside of the wheel housing behind the side trim panel
- Removing and Installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Nut
- 9 Nm
- Quantity: 2
- Nut
- 9 Nm
- Quantity: 2
- Driver Side Rear Thorax Airbag Crash Sensor -G256-
- Component location: on the inside of the wheel housing behind the side trim panel
- Removing and Installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Driver Thorax Airbag Crash Sensor -G179-
- Component location: inside the door
- For the safety precautions for working with front thorax airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and Installing. Refer to DRIVER THORAX AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER THORAX AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Quantity: 2
- Bolt
- 9 Nm
- Quantity: 2
- Driver Front Airbag Crash Sensor -G283-
- Component location: on the headlamp housing bracket
- Removing and Installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
