Component Location Overview - Seat Belts And Mounting Points

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

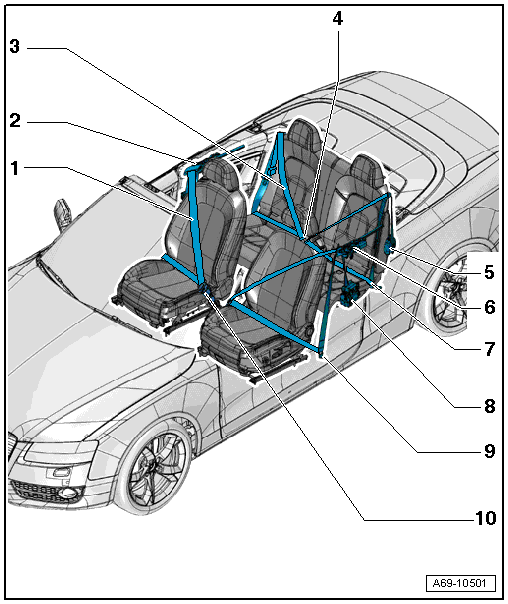

Fig 1: Seat Belts & Anchorage Points Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Three-Point Seat Belt
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
Right Seat Belt Positioning Motor -V414-
- Overview. Refer to OVERVIEW - SEAT BELT POSITIONING MOTOR .
- Removing and Installing. Refer to LEFT/RIGHT SEAT BELT POSITIONING MOTOR -V413- / -V414-, REMOVING AND INSTALLING .
Rear Three-Point Seat Belt
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Removing and Installing. Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
Rear Seat Belt Latch
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH .
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
Automatic Belt Retractor
- For the rear three-point seat belt
- Driver side with Driver Side Rear Seat Belt Tensioner Igniter -N196-, front passenger side with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Removing and Installing. Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
Left Seat Belt Positioning Motor -V413-
- Overview. Refer to OVERVIEW - SEAT BELT POSITIONING MOTOR .
- Removing and Installing. Refer to LEFT/RIGHT SEAT BELT POSITIONING MOTOR -V413- / -V414-, REMOVING AND INSTALLING .
Rear Belt End Fitting
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Removing and Installing. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .
Igniter 1 for Seat Belt Tensioner and Belt Force Limiter
- For the front three-point seat belt
- Driver Side:
  - Driver Seat Belt Tensioner Igniter 1 -N153-
  - Driver Belt Force Limiter -G551-
- Front Passenger Side:
  - Front Passenger Seat Belt Tensioner Igniter 1 -N154-
  - Front Passenger Belt Force Limiter -G552-
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
Front Belt End Fitting
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
Front Seat Belt Latch
- Overview. Refer to OVERVIEW - FRONT SEAT BELT LATCH .
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
