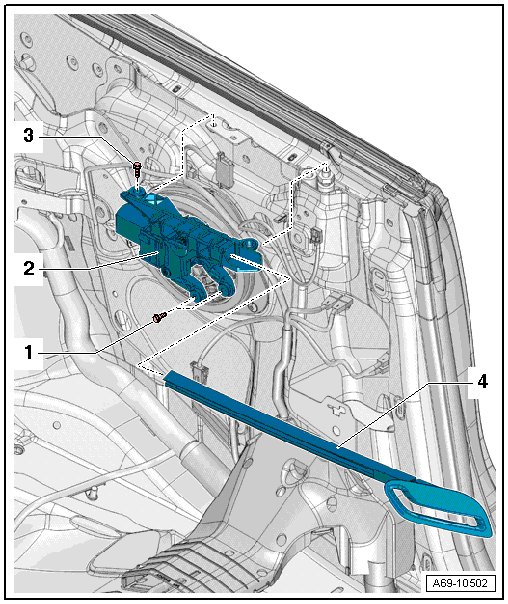

Overview - Seat Belt Positioning Motor
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 10 Nm
- Quantity: 2
- Tightening sequence. Refer to Installing .
- Seat Belt Positioning Motor
- Driver side: Left Seat Belt Positioning Motor -V413-
- Front passenger side: Right Seat Belt Positioning Motor -V414-
- Removing and Installing. Refer to LEFT/RIGHT SEAT BELT POSITIONING MOTOR -V413- / -V414-, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Tightening sequence. Refer to Installing .
- Seat Belt Positioning Arm
- Removing and Installing. Refer to LEFT/RIGHT SEAT BELT POSITIONING MOTOR -V413- / -V414-, REMOVING AND INSTALLING .
