Overview - Front Three-Point Seat Belt

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

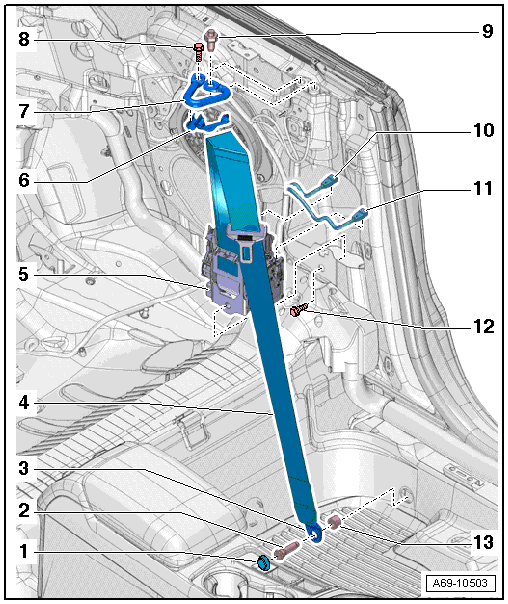

Fig 1: Exploded View Of Front Three-Point Seat Belt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cap
Bolt
- 45 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Belt End Fitting
- Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
Seat Belt Webbing
Automatic Belt Retractor
- Driver Side:
  - Driver Seat Belt Tensioner Igniter 1 -N153-
  - Driver Belt Force Limiter -G551-
- Front Passenger Side:
  - Front Passenger Seat Belt Tensioner Igniter 1 -N154-
  - Front Passenger Belt Force Limiter -G552-
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
Belt Guide
Seat Belt Guide
- Removing and Installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
Bolt
- 45 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Bolt
- 45 Nm
- With pin
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Connector
- For the Driver Belt Force Limiter -G551-
- For the Front Passenger Belt Force Limiter -G552-
- Disconnecting and connecting. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
Connector
- For the Driver Seat Belt Tensioner Igniter 1 -N153-
- For the Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Disconnecting and connecting. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 45 Nm
Bushing
