Component Location Overview - Luggage Compartment Trim Panels

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

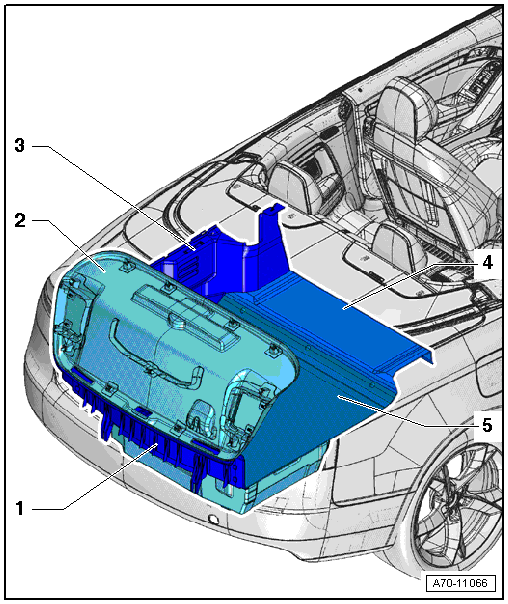

Fig 1: Identifying Luggage Compartment Trim Panels

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Lid End Trim Panel
- Overview. Refer to OVERVIEW - LOCK CARRIER TRIM PANEL .
- Removing and Installing. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .
Rear Lid Trim Panel
- Overview. Refer to OVERVIEW - REAR LID LOWER TRIM PANEL .
- Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
Luggage Compartment Side Trim Panel
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL .
- Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
Front Luggage Compartment Floor
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .
- Removing and Installing. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, FRONT LUGGAGE COMPARTMENT FLOOR .
Rear Luggage Compartment Floor
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .
- Removing and Installing. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, REAR LUGGAGE COMPARTMENT FLOOR .
