Overview - Rear Lid Lower Trim Panel

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

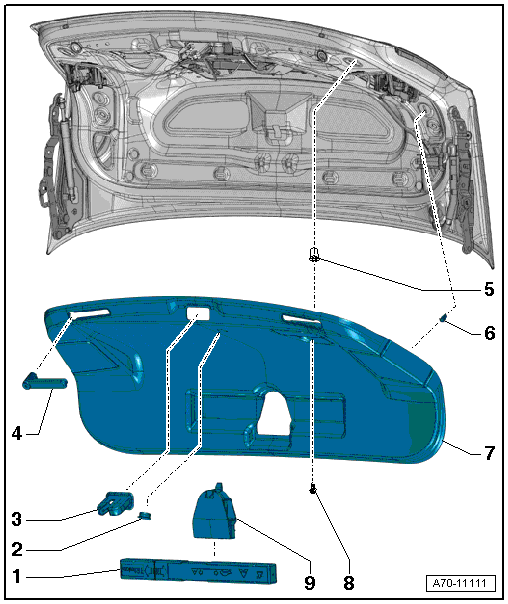

Fig 1: Exploded View Of Rear Lid Lower Trim Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Emergency Triangle
Plug
Trim Panel
- For the rear lid latch
- Removing and Installing. Refer to REAR LID LATCH TRIM PANEL, REMOVING AND INSTALLING .
Stop Strip
- Quantity: 2
- Clipped into the rear lid
Expanding Nut
- Clipped into the rear lid
Clip
- Quantity: 11
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool:T40280 .
- Insert in the trim panel
- Replace if damaged or deformed
Rear Lid Trim Panel
- Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
Bolt
- 1.8 Nm
Bracket
- For the emergency triangle
- Removing and Installing. Refer to EMERGENCY TRIANGLE BRACKET, REMOVING AND INSTALLING .
