Overview - Luggage Compartment Floor

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

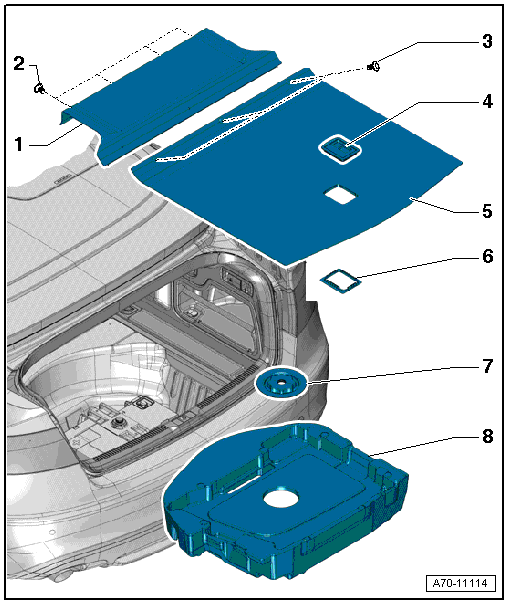

Fig 1: Exploded View Of Luggage Compartment Floor Mat Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Luggage Compartment Floor
- Removing and Installing. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, FRONT LUGGAGE COMPARTMENT FLOOR .
Expanding Clip
- Quantity: 4
Expanding Clip
- Quantity: 3
Bracket
- For the luggage compartment floor
- Removing and Installing. Refer to LUGGAGE COMPARTMENT FLOOR BRACKET, REMOVING AND INSTALLING .
Rear Luggage Compartment Floor
- Removing and Installing. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, REAR LUGGAGE COMPARTMENT FLOOR .
Frame
- For luggage compartment floor bracket
- Removing and Installing. Refer to LUGGAGE COMPARTMENT FLOOR BRACKET, REMOVING AND INSTALLING .
Nut
- For the spare tire mount
- It must audibly engage while tightening, otherwise keep turning
Vehicle Tool Kit
- Equipped on some models
