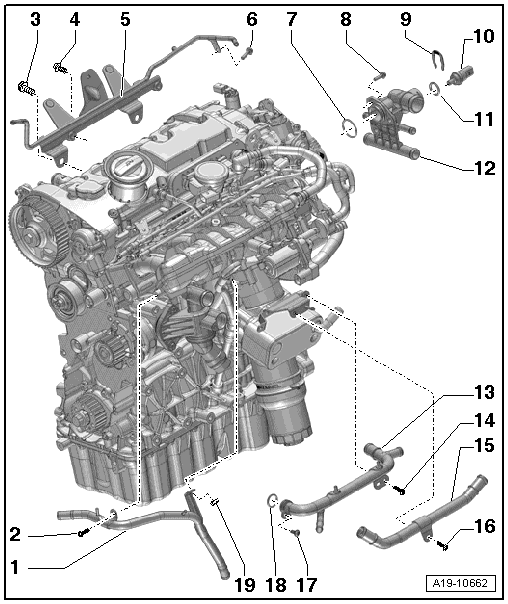

Coolant Pipes Overview
WARNING: This page is about a different variant/trim than selected.
- Right Front Coolant Pipe
- Removing and installing, refer to RIGHT FRONT COOLANT PIPE
- Bolt
- 6 Nm
- Bolt
- 40 Nm
- Bolt
- 23 Nm
- Coolant Ventilation Line
- Bolt
- 9 Nm
- O-ring
- Replace
- Bolt
- 9 Nm
- Retaining Clip
- Engine Coolant Temperature Sensor -G62-
- Removing and installing, refer to ENGINE COOLANT TEMPERATURE SENSOR
- O-ring
- Replace
- Coolant Connection
- Front Coolant Pipe 1
- Removing and installing, refer to FRONT COOLANT PIPES 1 AND 2
- Bolt
- 9 Nm
- Front Coolant Pipe 2
- Removing and installing, refer to FRONT COOLANT PIPES 1 AND 2
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- O-ring
- Replace
- Nut
- 9 Nm
