Right Front Coolant Pipe

Special tools and workshop equipment required

• Hose Clamps Up to 25 mm Dia. 3094
• Hose Clip Pliers V.A.G 1921

Removing

-- Remove the engine cover -arrows-.

Fig 1: Identifying Engine Cover

Courtesy of AUDI OF AMERICA, LLC

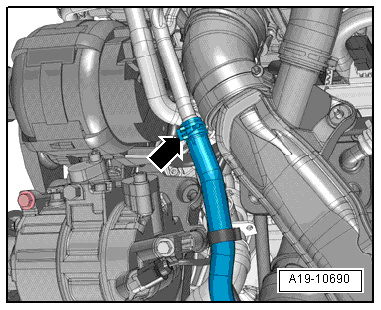

-- Clamp off the coolant hose -arrow- with the 3094 and remove.

Fig 2: Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Clamp off the coolant hose -arrow- with 3094 and remove.

Fig 3: Identifying Coolant Hose & Clamp

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Lay a cloth below to catch escaping coolant.

Fig 4: Locating Coolant Pipes

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt and nut -arrows- and the right front coolant pipe.

Installing

• Tightening specifications, refer to COOLANT PIPES OVERVIEW .

Installation is done is reverse order, observe the following:

-- Check the coolant level COOLING SYSTEM, DRAINING AND FILLING => Check the coolant level. .
